PDLC Smart Film Glass also called switchable glass, Privacy Glass, PDLC glass or intelligent glass, which is laminated by smart film inside two pieces of tempered glass to control the glass from opacity to clear on demand. More convenient installation, better adaptation to wet and complex environment.
PDLC Smart Film glass is a new type of special photoelectric glass with a sandwich structure that laminates a polymer dispersed liquid crystal(PDLC) film between two pieces of glass, which is integrated by high temperature and high pressure gluing. You can control the glass opaque or clear on demand by controlling the current is on or off.

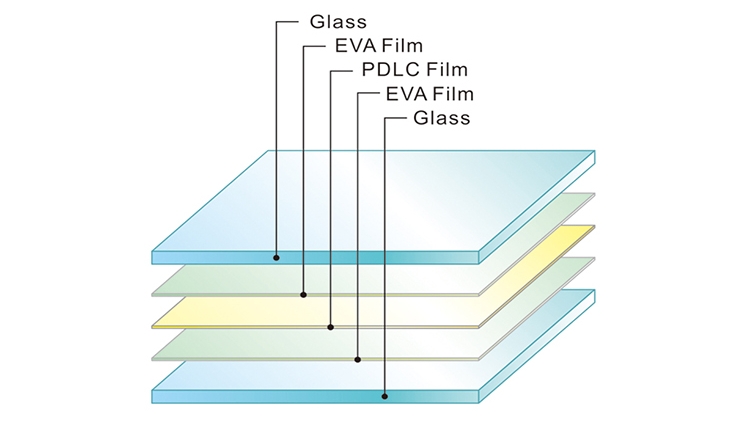

The smart glass is a kind of laminated glass. It not only has performance of safety glass,but also has opaque and clear switchable features. The core part is the PDLC film sandwiched between two layers of glass. There has a layer of EVA film on each side to make glass UV blocking.The wires and busbar is existed. So it is more easy to install.

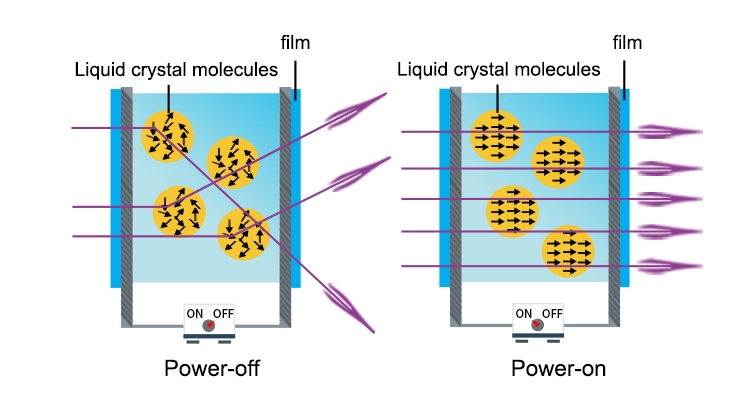

When the current is power off, LC molecules point in random directions, so light is scattered, now the film appear opaque.
When the current is power on, the LC molecules align like opening blinds, so light can pass through, now the films appear clear.
Q1: Why pdlc smart film/glass for residential or home are very important?
Windows are incredibly important in the design of a home. Because,they are important for the home’s aesthetics, they allow exterior light to enter the home, can be opened for ventilation, and solar energy entering through southern facing windows can help offset residential home heating costs in the winter. On the down side, according to the U.S Department of Energy, older, inefficient windows can be responsible for over 25 percent of energy costs of heating/cooling a home. For these reasons and more, many homeowners are opting for smart windows,such as pdlc smart film for residential. With its high heat reduction, increased privacy with bright,enhanced security and emerging saving. The doors or windows can switch back and forth turning from transparent to opaque,so it is a Revolutionary for Your Windows with PDLC smart Film or Glass. Modernize the Space with a Touch of Innovation. Transform Your Space with it. Right now!
Q2:Why do most people choose PDLC Smart Film Glass Window as their saving cost of new house designing or decorating the older house?
If you are replacing your windows, or building a new home where you have input on the windows being used, there are high tech options on glass windows that you may want to consider.
An alternative are pdlc smart window films. While this might not be the best aesthetic choice for a classic Victorian home, smart window films remove the need for window treatments by using a window film that can be adjusted from clear to fully opaque through the application of a voltage to the film. The most common technology for smart window films is PDLC (Particle Displaced Liquid Crystal) where a voltage applied to the film causes it to be clear. When the voltage is removed the film becomes opaque. By varying the voltage the amount of opacity can be infinitely adjusted.
PDLC-based smart window films can be retrofit onto any window. Applying smart window film to a window is no more complicated than the application of any other window film with the exception of the wiring.
Q3：The digital technology enable digital homes more smart and convenient.
It should also be noted that smart window films can even be more useful in a commercial setting. Glass-walled conference rooms are very common in today’s offices. But, the glass walls can make occupants feel like they are in a fish bowl. PDLC Smart window films are an easy way of providing privacy when a conference room is in use. It is also very common for executive offices to have either a glass door or a door with a window in it. Smart window films are an easy way of providing privacy for an important meeting.
Part of the value of smart home technology is in the functionality that the system provides, and another PDLC smart window glass is the confidence that the prospective buyers have in their ability to maintain and enhance the system without you. If the system was installed by a professional smart home integrator, then the prospective buyer can rely on them. If you installed the system yourself, then you are going to need to prove that the system is well designed, is easy to maintain, and can be enhanced over time. The best way to do that is through proper documentation.
Turning a basic home into a smart home is an investment. If you expect to get a return on that investment when you sell your home, then the systems that you have installed need to be properly documented so prospective buyers see value in what you have built.
