the PDLC film or smart film is a thin adhesive layer of liquid crystals that is applied to your window or glazing and that we connect to your electrical installation.
PDLC is manufactured with a self-adhesive cling layer on one side (peel and stick) which makes it easy to apply to both new and existing glass (no specialist installation equipment required). The application for car window、private living space like residential shower or office workplace and so on.A simple ON – OFF PDLC film mode switches the film from being transparent to opaque. When the film is off, it is opaque but allows light to pass through. And turn on the smart film for it to become transparent.

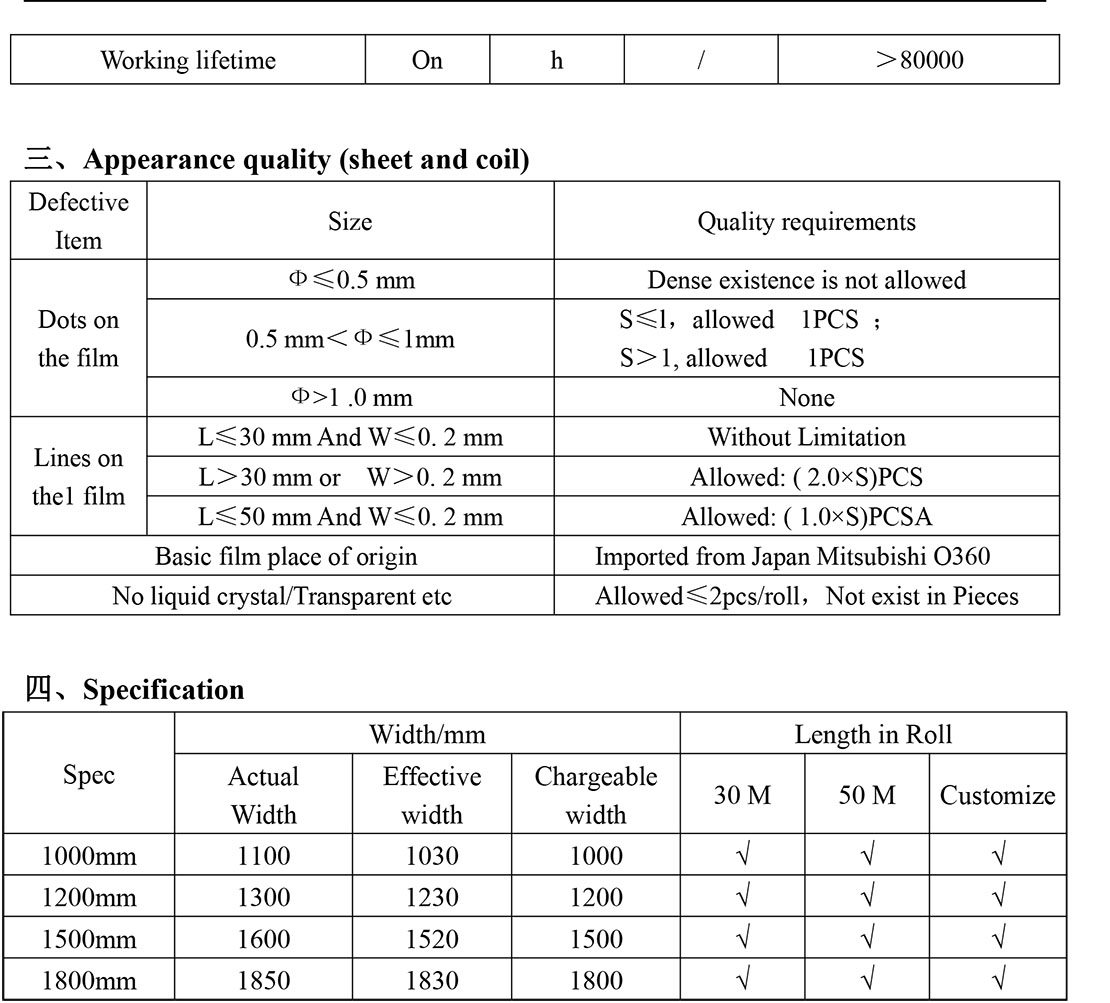

PDLC Self-Adhesive Switchable Smart Film is available in widths up to 1800mm and can be cut to any size. Custom shapes and sizes of Pdlc self-adhesive switchable smart film are available and multiple pieces can be joined together to create large switchable glazed panels or partitions.
Offices/ Private houses (bathrooms, bedrooms and living rooms)/ Hotels/ Catering/ Event rooms/ Room in banks / Meeting rooms/ Laboratories/ Hospital operating rooms , health practices (dentist, veterinarian, etc.)/ Jewelry stores.

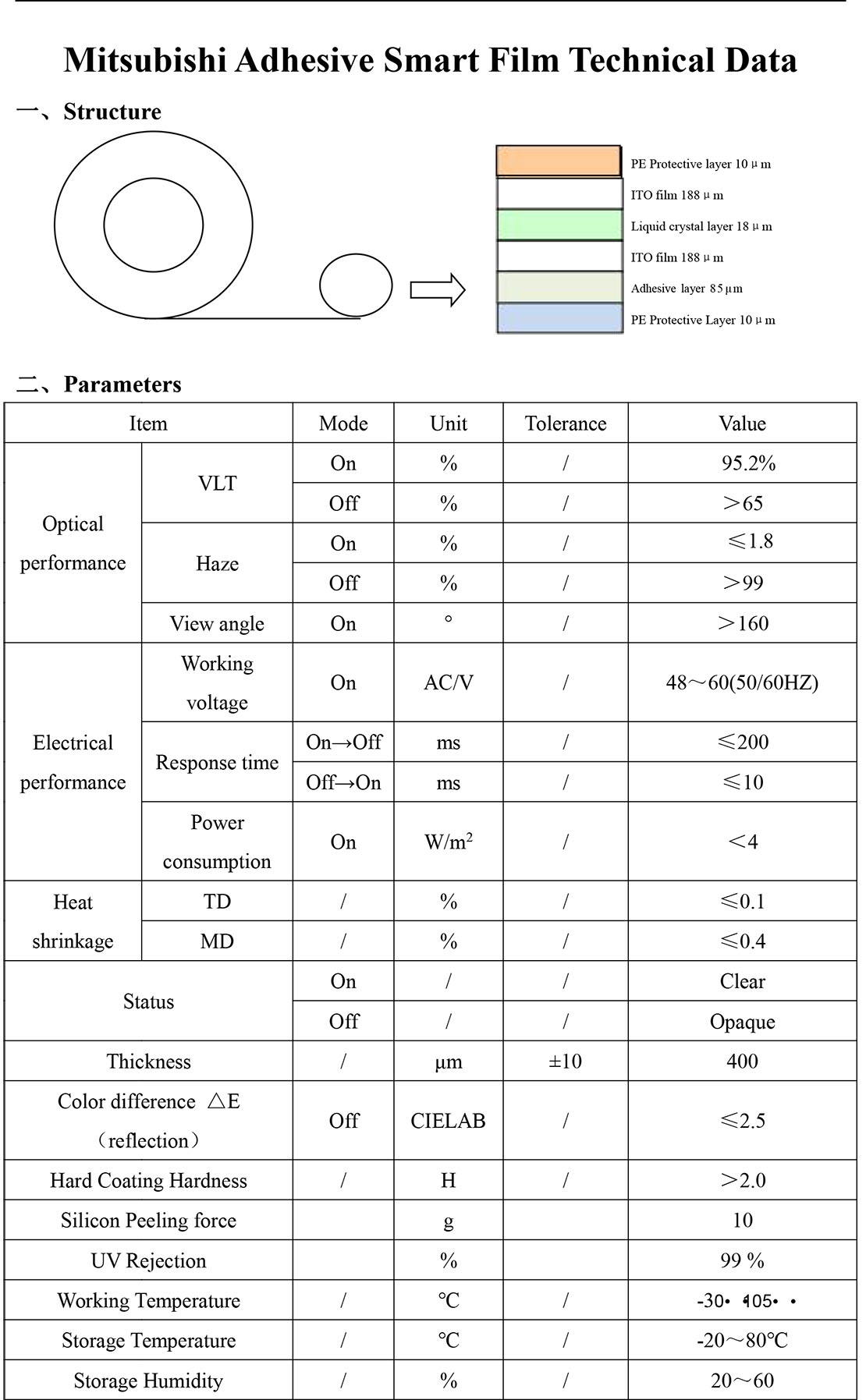

The core part of the PDLC self-adhesive smart film is a coating composed by liquid crystal molecules,On both sides of the PDLC layer is ITO conducting film which has conductive function,The outer side of the two ITO films are anti-scratch film and self-adhesive layer,the special adhesive film laminated on one side,so easily applied to an existing glass.finally the layer of protective film is covered on both side.
Two layers of ITO conductive film are filled with liquid crystal and polymer materials,So when the power off, the LC molecules are arranged in an irregular manner.meanwhile light is dispersed,So the film appears in an opaque state at this time,Now privacy protection is realized.
On the contrary, when power on,The current conducted by ITO films drive the LC molecules are arranged in an regular manner. meanwhile light can pass through freely, So the film appears transparent state at this time. Increase the sense of space in the room, while making the window looks more magical!
